Remote Playback and Video download procedure for hikvision IVMS 4200 | CCTV Training Oman

Procedure for checking and downloading CCTV recorded footage using the "hikvision Video management software IVMS 4200 " is explained:

STEPS

1.       Open IVMS 4200 client

2.       Go to Remote Playback

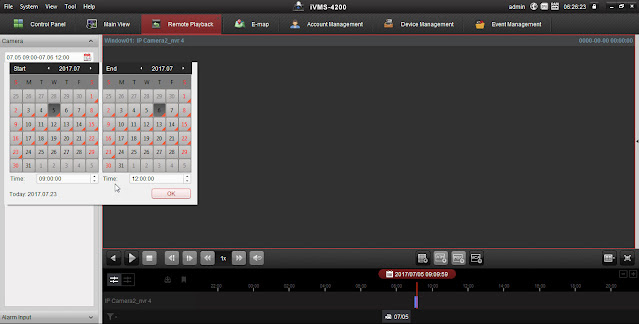

3.       Click the calendars icon  to activate the calendars dialog.

Select the start and end date. also set the accurate time.

Click OK to save the searching period.

In figure:

Start Time: 2017-07-05 09:00:00

End Time: 2017-07-06 12:00:00

4.      Double-click the camera or group to start the playback.

5.       The found video files of the selected group or camera will be displayed on the right of the interface in chronological order. You can filter the results through the Filter text field.

The first video file will be played back automatically by default.

Normal Playback Toolbar:

On the Normal Playback page, the following toolbar buttons are available:

Right-click on the display window in playback to open the Playback Management Menu:

The following items are available on the right-click Playback Management Menu:

Downloading Video Files

During playback, you can click on the download iconto download the video files of the NVR/Camera to the local PC. You can select either download by file, by date, or by tag.

Download by Files

Steps:

1.       Click Download by Files tab in the File Download interface. You can view the video files

               Information of selected camera.

2.       Check the checkbox of the video file and the total size of the selected files will be shown below.

3.       Click Download to start downloading the file to the local PC.

4.       You can input the flow (0 to 32768 kbps) and click Set to control the downloading speed.

5.       Optionally, you can click Stop to stop downloading manually

Download by Date

Steps:

1. Click Download by Date tab in the File Download interface.

2. Check the checkbox of the time duration to enable it, and click to set the start and end time.

3. Click Download to start downloading the file to the local PC. The progress bar shows the

     Downloading process. You can input the flow (0 to 32768 kbps) and click Set to control the        downloading speed.

4. Optionally, you can click Stop to stop downloading manually.

Download by Tag

Steps:

1. Click Download by Tag tab in the File Download interface. The added tags will be displayed.

2. Check the checkbox of the tag and the total size of the selected files will be shown below.

3. Click Download to start downloading the selected file (30 seconds before the selected tag to 30

Seconds after the tag) to the local PC.

4. Optionally, you can click Stop to stop downloading manually.
